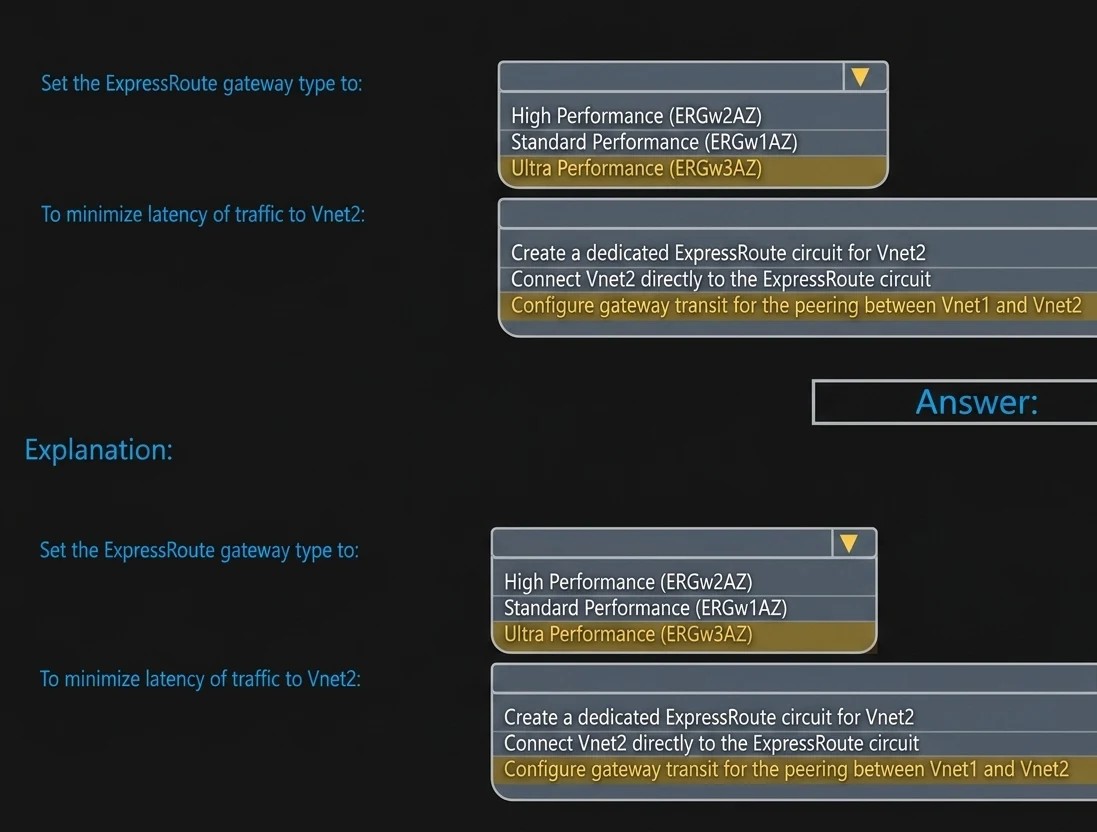

HOTSPOT You need to recommend a configuration for the ExpressRoute connection from the Boston datacenter. The solution must meet the hybrid networking requirements and business requirements. What should you recommend? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
Correct Answer: A
Explanation:
For the first question, only ExpressRoute GW SKU Ultra Performance support FastPath feature. For the second question, vnet1 will connect to ExpressRoute gw, once Vnet1 peers with Vnet2, the traffic from on-premise network will bypass GW and Vnet1, directly goes to Vnet2, while this feature is under public preview. ====Reference ExpressRoute virtual network gateway is designed to exchange network routes and route network traffic. FastPath is designed to improve the data path performance between your on-premises network and your virtual network. When enabled, FastPath sends network traffic directly to virtual machines in the virtual network, bypassing the gateway. To configure FastPath, the virtual network gateway must be either: Ultra Performance ErGw3AZ VNet Peering - FastPath will send traffic directly to any VM deployed in a virtual network peered to the one connected to ExpressRoute, bypassing the ExpressRoute virtual network gateway. https://docs.microsoft.com/en-us/azure/expressroute/about-fastpath Gateway SKU https://docs.microsoft.com/en-us/azure/expressroute/expressroute-about-virtual-network-gateways
Question 2

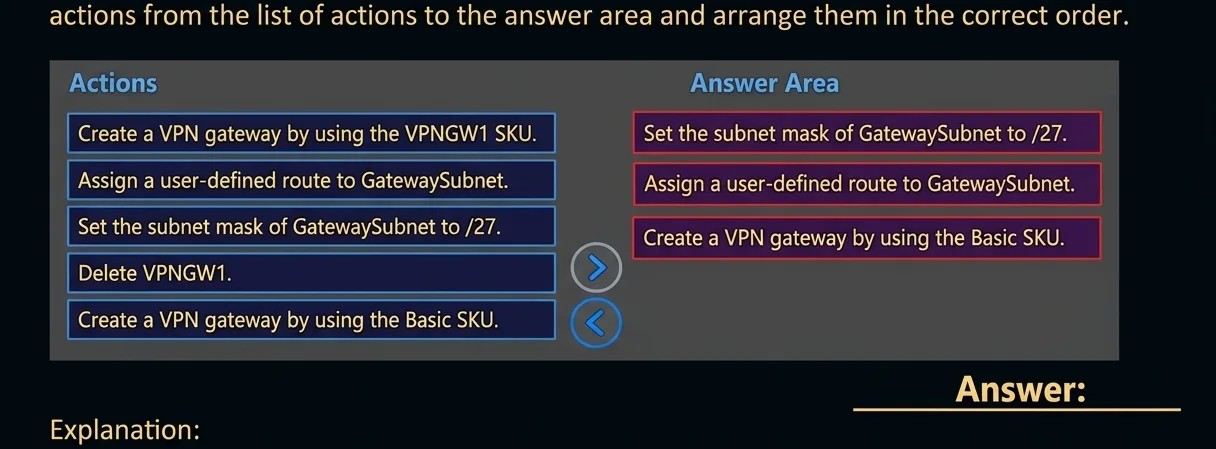

DRAG DROP You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements.
Which three actions should you perform in sequence for Vnet1? To answer, move the appropriate
actions from the list of actions to the answer area and arrange them in the correct order
Correct Answer: A
